The robotic driver platform of EndoRobotics. Built on a standard hardware and software interface, it powers compatible single-use instruments on a conventional endoscope — operated through handheld controllers.

8"Touch display

DualController system

19.9 kgCompact driver

4-axisInstrument motion

Download brochure Request a demo

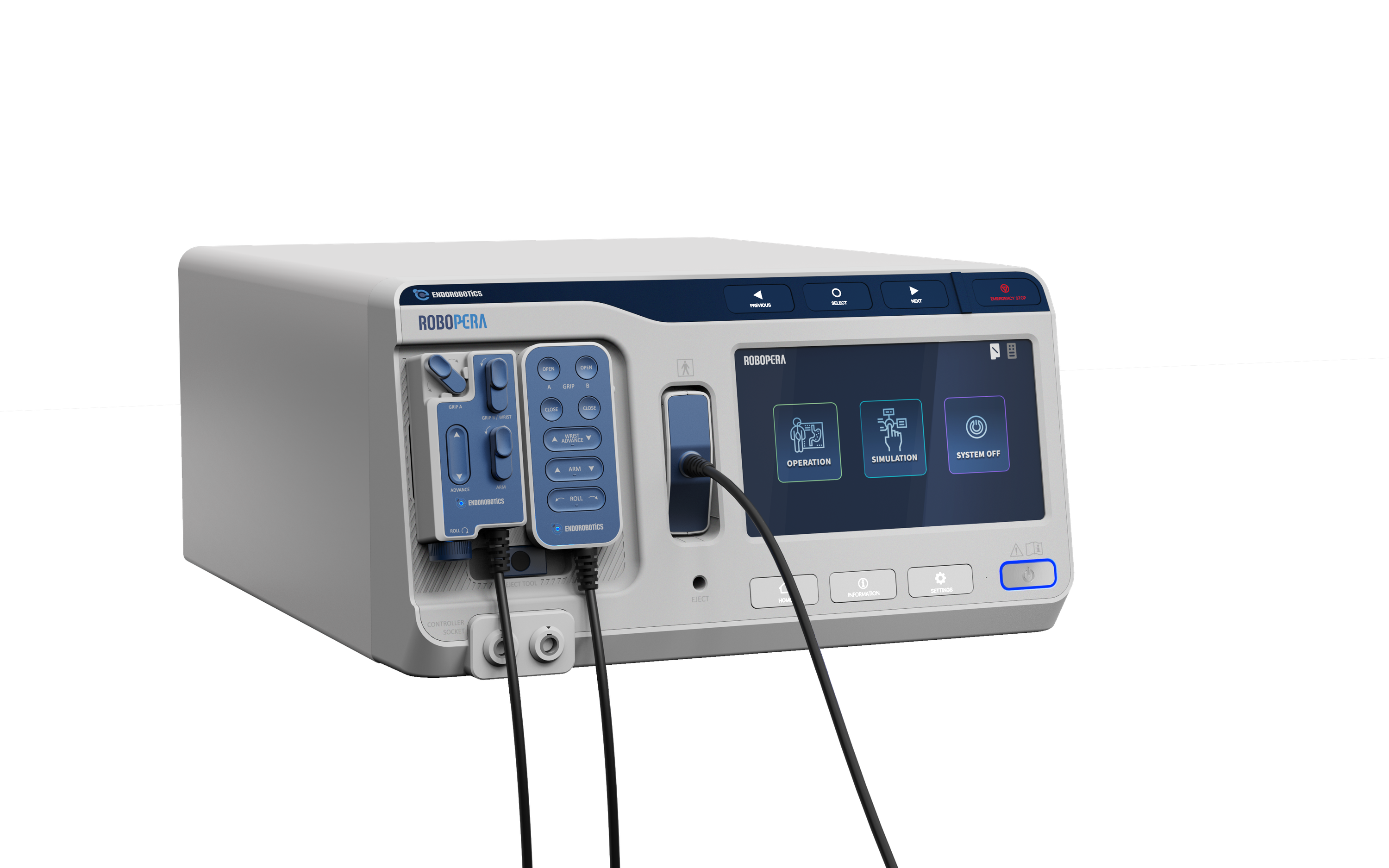

ROBOPERA driver unit with 8-inch touch display and dual controllers

Product Overview

ROBOPERA™ is intended to hold and lift the tissue and mucosal membrane within the esophagus, stomach, colon, and rectum — excluding the small intestine — during endoscopic procedures performed by physicians.

How the System Works

What the ROBOPERA™ system includes and does, based on its Instructions for Use.

Works with Conventional Endoscopes

Designed for use with compatible conventional endoscopes, including Olympus GIF-HQ and CF-HQ series models listed in the IFU.

Multi-Axis Motion Transmission

ROBOPERA™ transmits precise multi-axis motion — Wrist, Arm, and Roll — to the connected instrument, with additional functions such as Grip available depending on the instrument type.

Multiple Instrument Options

One driver platform supports a range of EndoRobotics single-use instruments.

Three Parts, One Workflow

The system consists of a driver unit, two controllers, and a single-use cartridge.

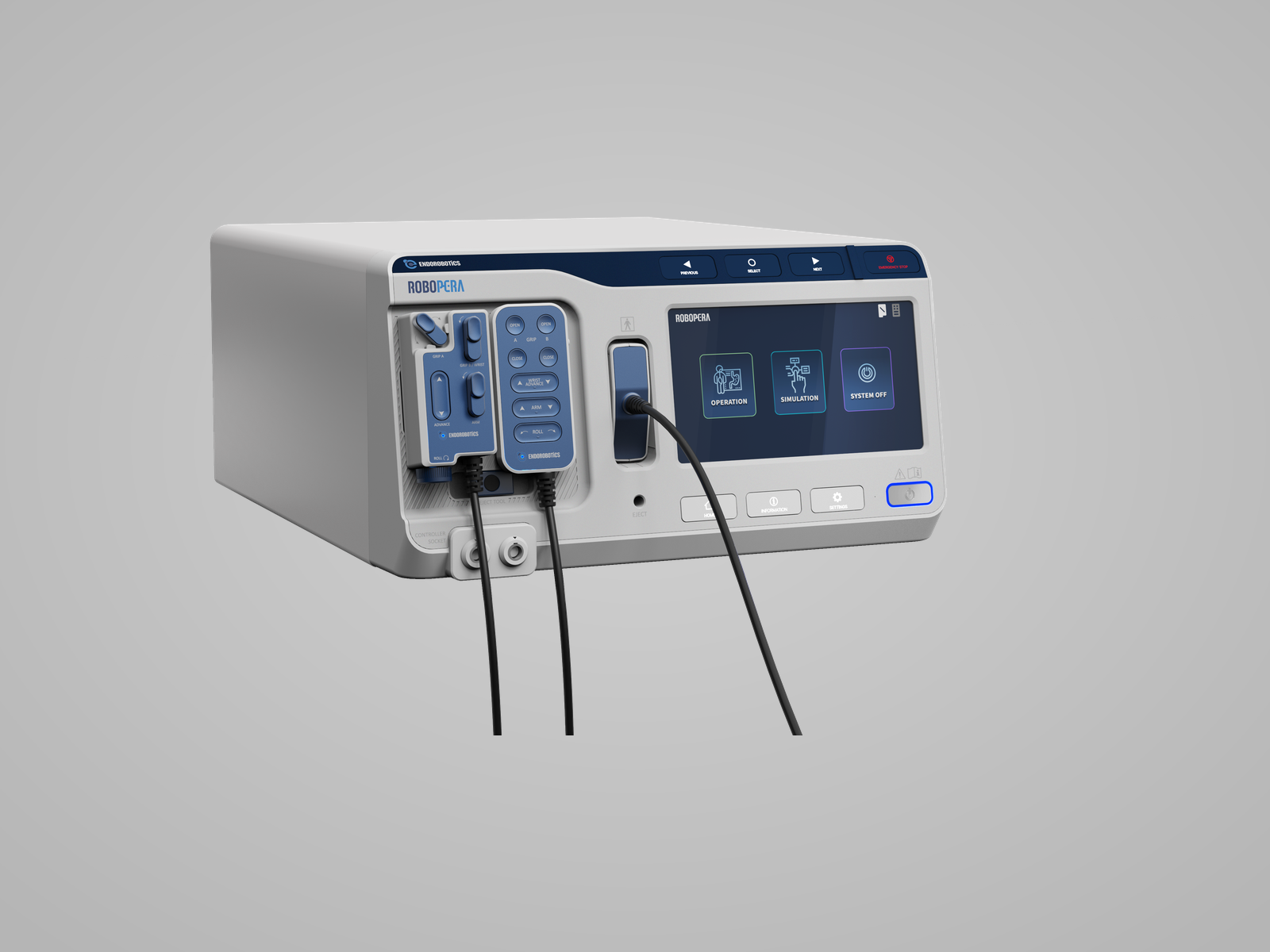

Driver Unit

Placed in a standard endoscopy station or mounted on an endoscopy trolley
Integrated 8" touch display for setup and monitoring

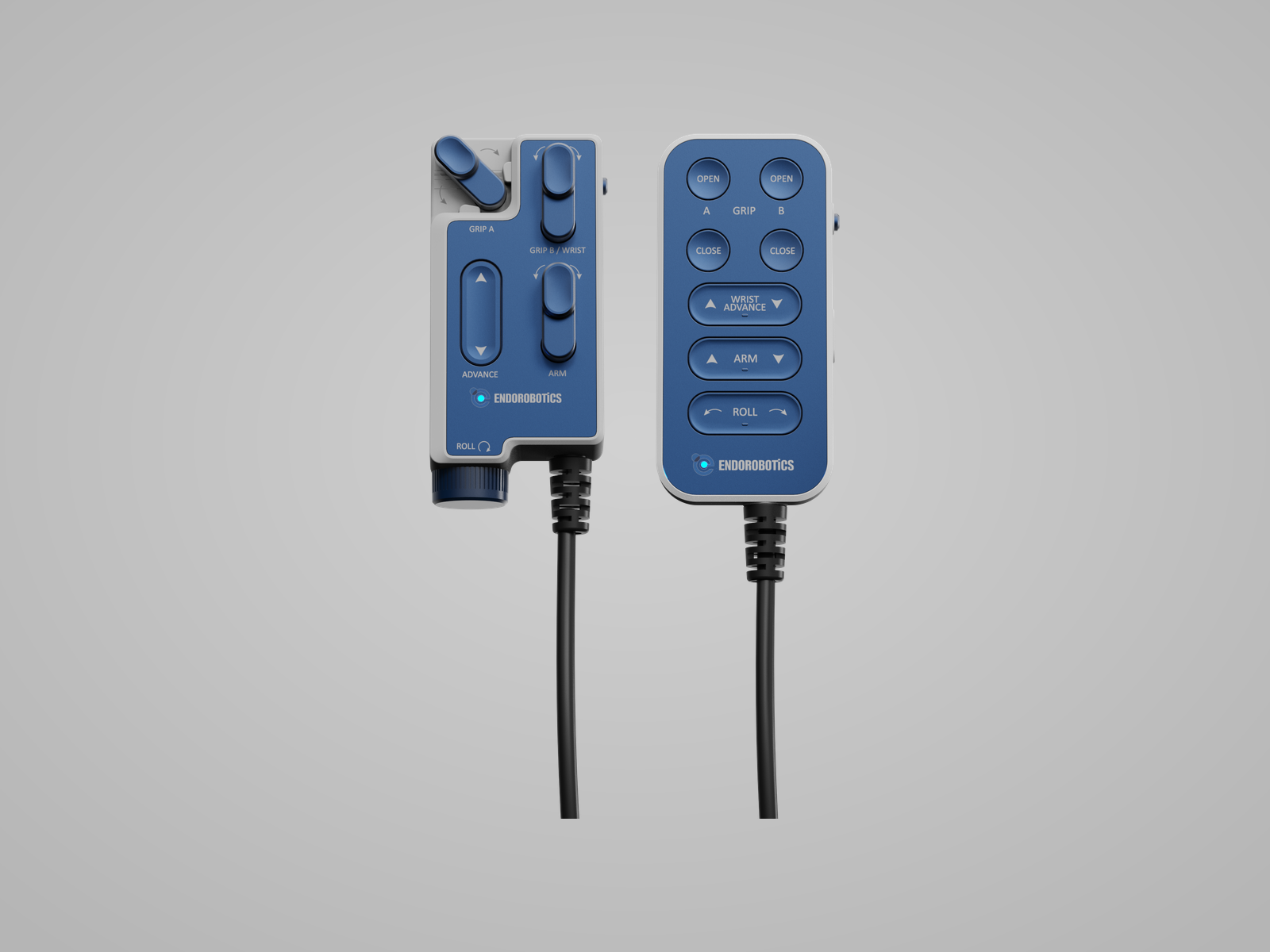

Controller

Handheld, available in two types — A and B
Identical functionality; see Technical Specifications for size and weight

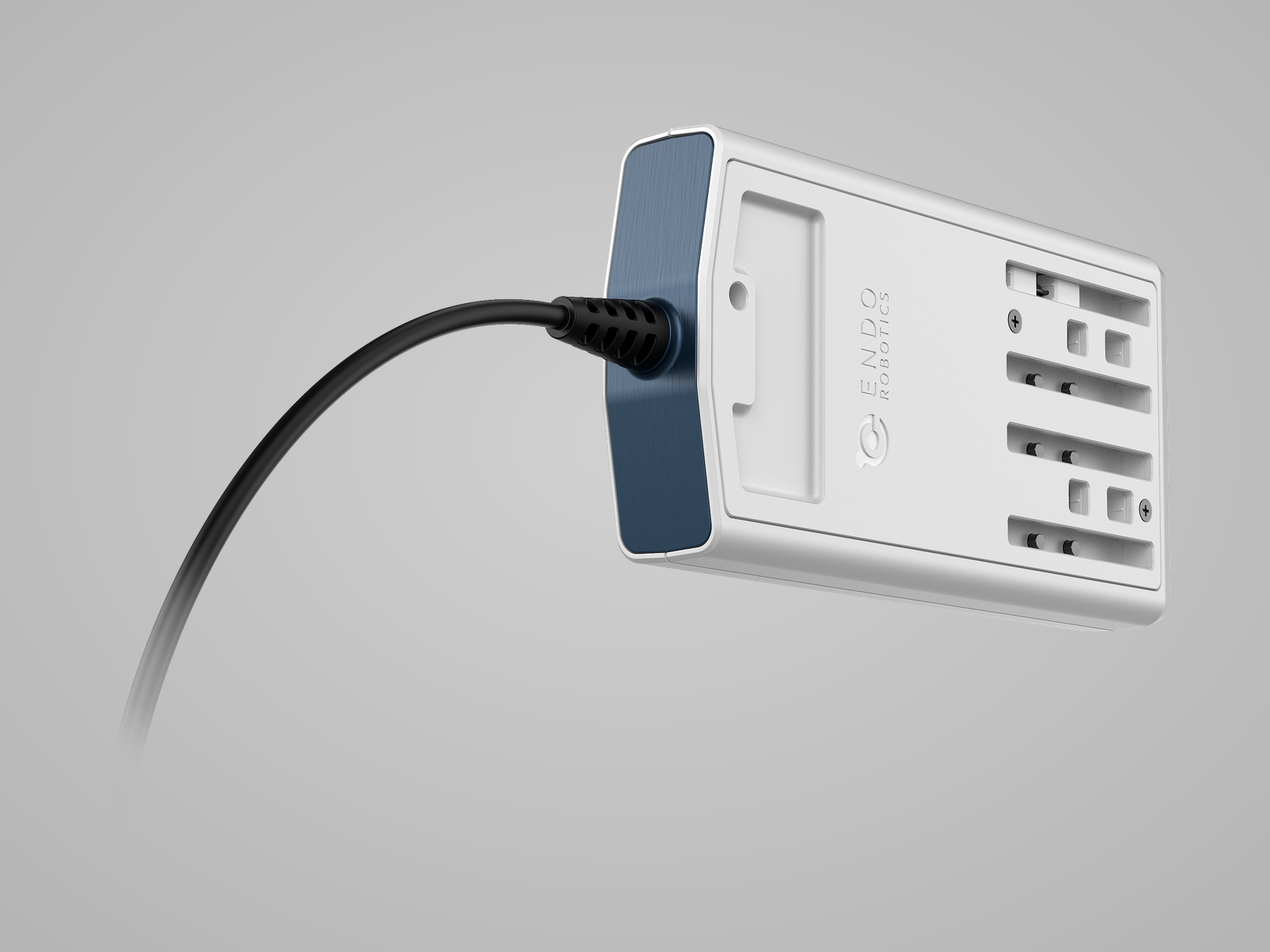

Cartridge System

Disposable cartridge for single use only
Inserted into the ROBOPERA™ driver; removable with the Cartridge Eject Tool

Technical Specifications

Weight: 19.9 kg
Power supply: 100–240 VAC, 50/60 Hz, 60–100 VA
Fuse: T4.0AL 250 VAC
Dimensions: 370 W × 460 D × 207 H mm
Display: 8" touchscreen
Controller A: 48 × 101 × 41 mm · 190 g
Controller B: 48 × 116 × 19 mm · 131.5 g
Operating conditions: 10–40 °C · 30–85% RH · 700–1060 hPa
Storage conditions: 1–40 °C · 10–85% RH · 700–1060 hPa

Ordering information — ROBOPERA™ System configurations

Articulated Basic Gripper G (AB-G-01)ER-R-002

Articulated Dual Gripper G (AD-G-01)ER-R-003

Every configuration includes the ROBOPERA™ driver unit, Controller A & B, and standard accessories (Controller Holder, Cartridge Eject Tool, Locking Bracket, power cable). Configurations differ only by the included single-use instrument. Source: ROBOPERA™ System Instructions for Use (IFU-002).

Scientific Publications

Selected independent, peer-reviewed publications, provided for general scientific and educational information. Intended for healthcare professionals.

Peer-reviewed · First-in-human

A novel robotic arm-assisted endoscopic submucosal dissection platform with augmented traction for gastric neoplasms: a first-in-human prospective pilot study (with videos)

Jeon HJ, Keum B, Lee B, et al. · Gastrointestinal Endoscopy, 2026;103(5):967–975.e1

View on PubMed

Peer-reviewed · Review

Current Status of Robotic Therapeutic Endoscopic Platforms

Kim SH. · Korean Journal of Gastroenterology, 2026;86(1):10–15

View on PubMed

Downloads & Documentation

Product Brochure

ROBOPERA™ overview, features & specifications (PDF)

Download

Instructions for Use (IFU)

Full clinical documentation, available on request for healthcare professionals

Request

ROBOPERA™ is a medical device intended for use by trained healthcare professionals. Product availability, specifications, and regulatory clearances vary by country. Please refer to the Instructions for Use (IFU) for complete indications, contraindications, warnings, and precautions.
